SONY 9” (22.7Cm) Digital Media Receiver With Weblink™ Cast-XAVAX8100

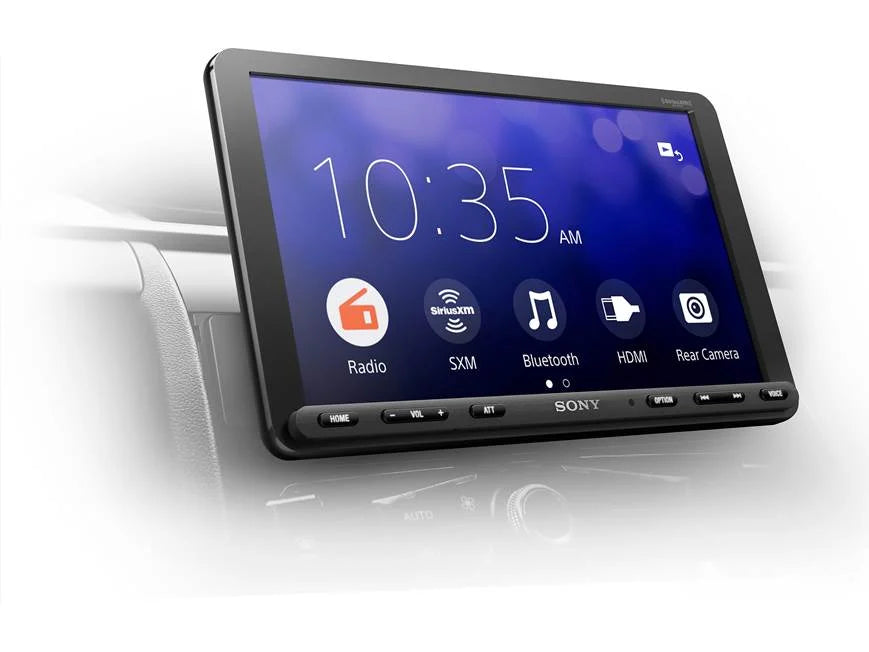

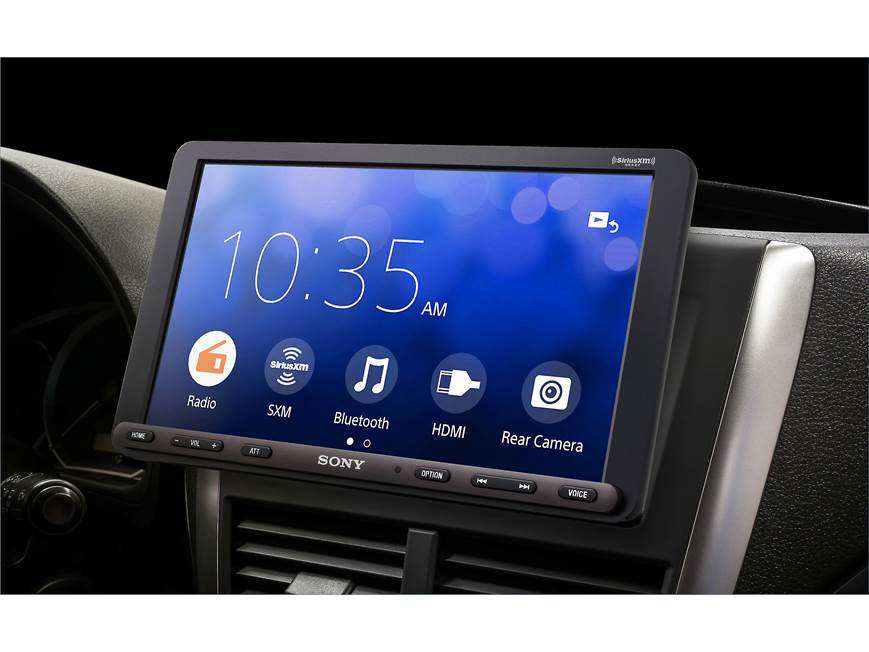

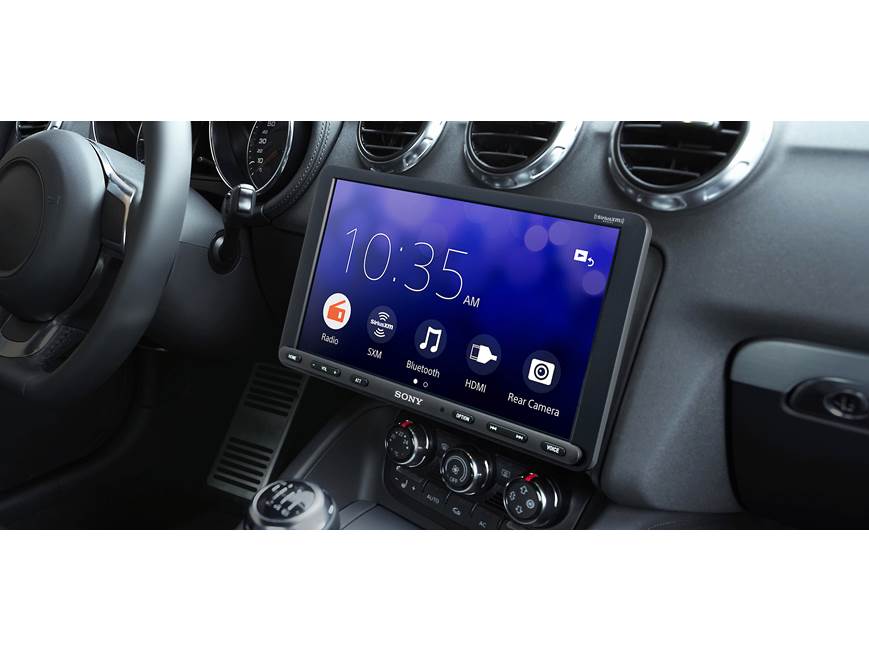

The Sony XAV-AX8100 is a premium 9″ single-DIN floating multimedia receiver featuring a large anti-glare touchscreen, Apple CarPlay, Android Auto, HDMI input, and powerful 5-volt preouts for high-performance system builds.
| Feature | Specification / Details |
|---|---|

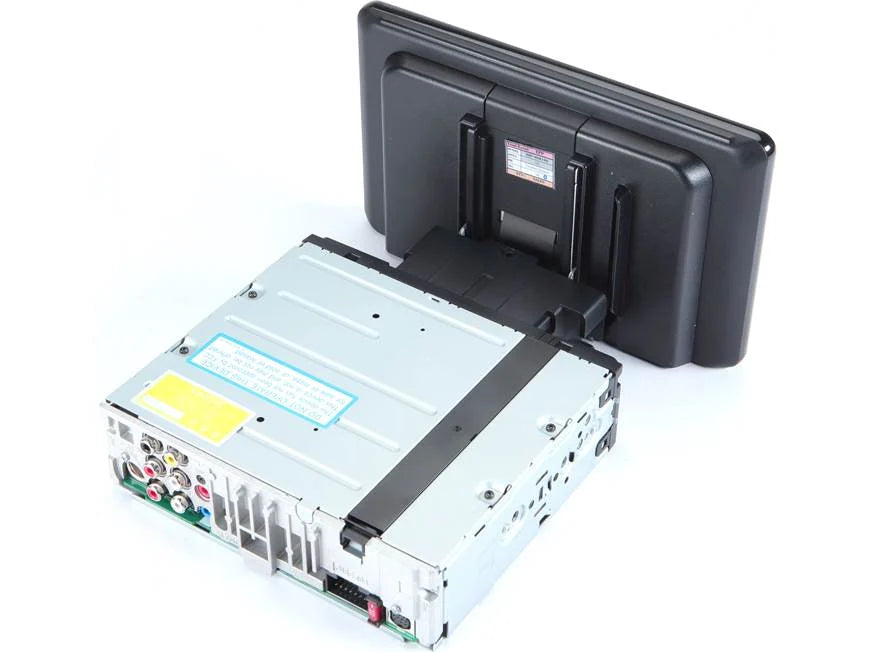

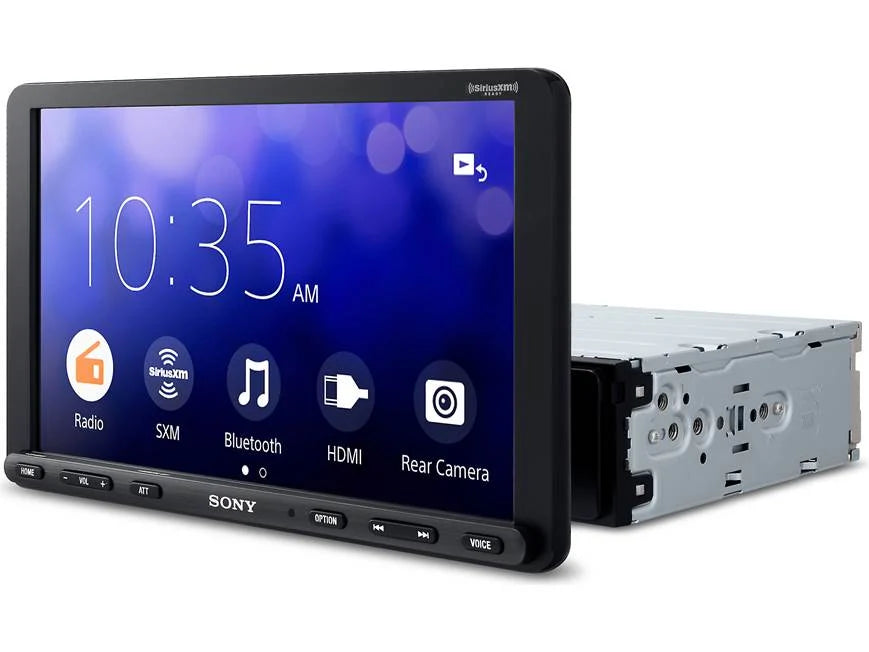

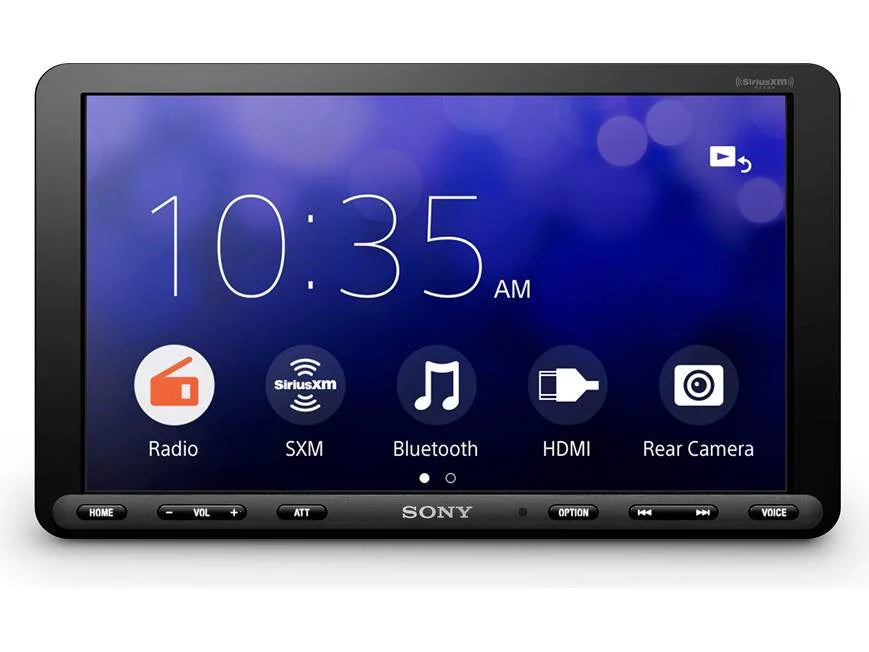

| Touchscreen | 8.95" Anti-Glare Resistive LCD, 800x480 pixels (1,152,000 pixels), responsive touch, single-DIN floating mount. |
| Mounting Adjustments | Tilt +/-10°, Depth 1.5625"-2.375", Height 2.375". Must adjust before final installation. |
| Picture Adjustments | Dynamic, Standard, Theater, Custom modes; dimmer (-5 to +5); 5 wallpapers; aspect ratios 4:3, Zoom, 16:9, Captions. |
| Safety Note | Video playback requires parking brake; CarPlay, Android Auto, and Bluetooth audio still available while driving. |
| Front-Panel Buttons | Volume, source, sound settings, voice control. |
| Remote Control | IR wireless remote (RM-X170); compatible with steering wheel control adapters (sold separately). |

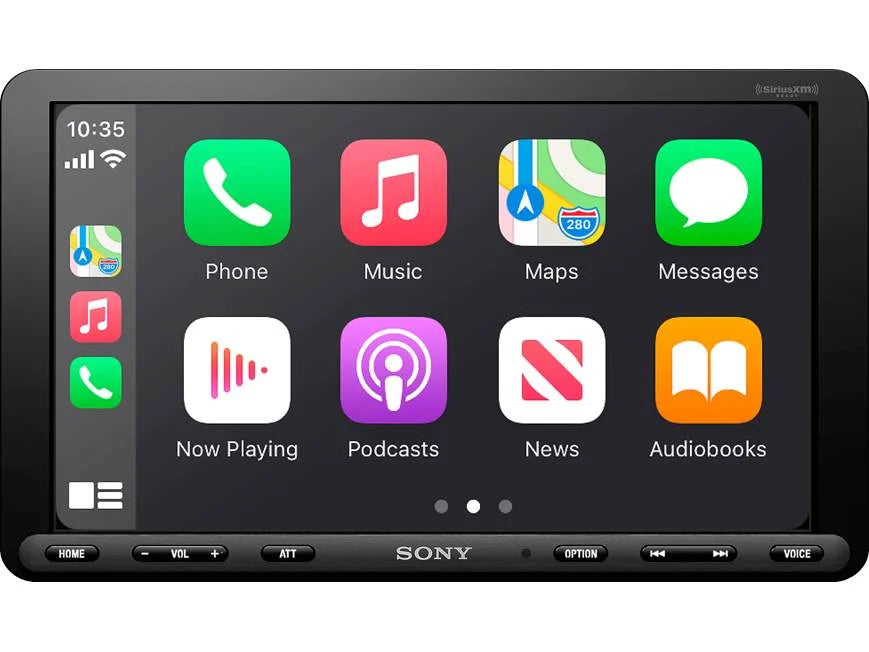

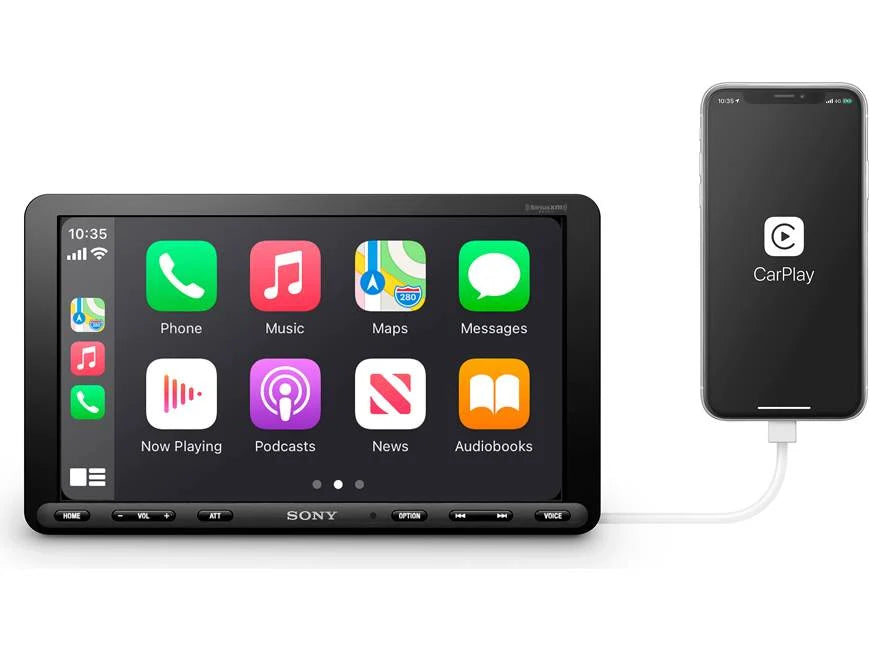

| Apple CarPlay | iPhone 5+ (iOS 7.1+), rear-panel USB connection, Siri voice control, Apple Maps, Google Maps, Waze. |
| Android Auto | Android 8.0+ (Oreo), USB & Bluetooth pairing, Google Assistant, Google Maps & Waze, voice messaging/calls. |
| WebLink | iOS 13+ / Android 7.0+, apps like YouTube, Yelp, Zomato; requires parking brake for video playback. |
| USB Extension | 52" & 23" USB cables included for device connection. |
| Smartphone Charging | Rear USB port provides 1.5A charging (ACC or On). |
| Bluetooth | Built-in 3.0, HFP 1.6, PBAP 1.1, A2DP 1.3, AVRCP 1.3, Secure Simple Pairing. |
| Hands-Free Calls | External mic w/ adjustable gain, answer/reject/redial, store 1,000 contacts, call history. |
| Wireless Audio Streaming | Supports SBC & AAC, displays song/artist info (AVRCP 1.4 phones only). |
| USB MSC Playback | MP3, WMA, AAC, FLAC, WAV; video playback while parked; max 256 folders / 2,000 files. |

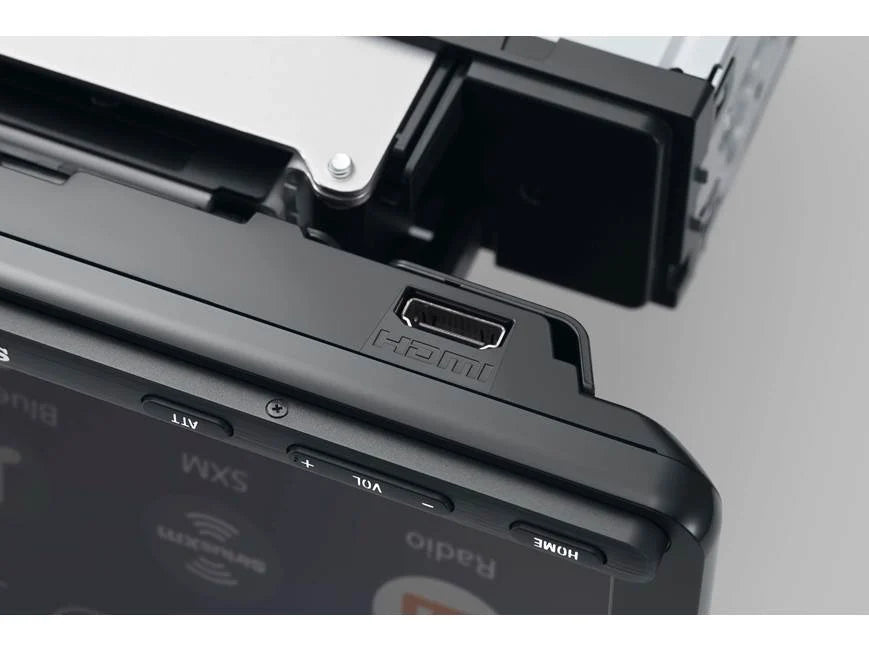

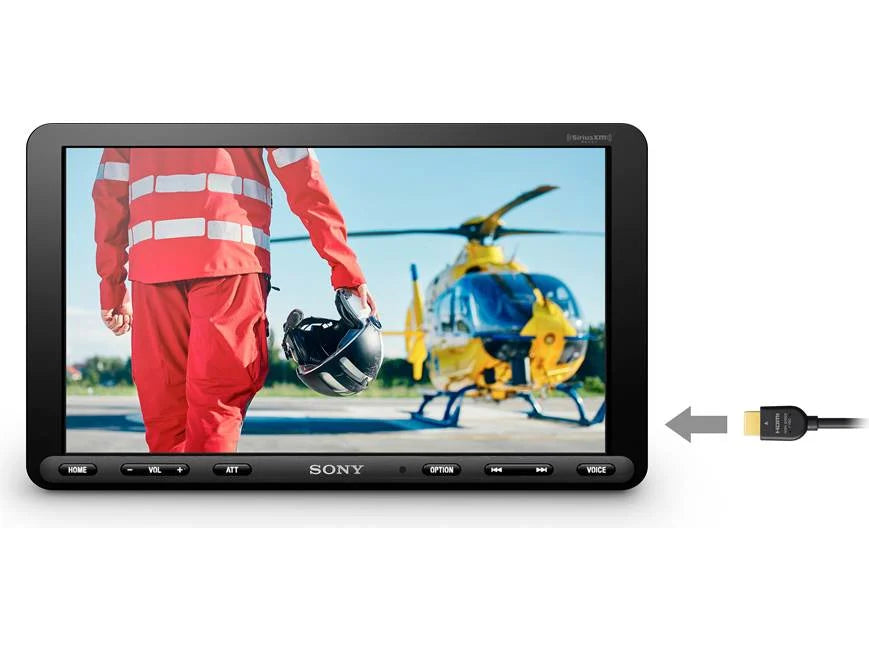

| HDMI Input | Mirror Apple/Android devices or external A/V source; video requires parking brake. |
| Rearview Camera Input | Composite input, parking guide lines, auto-switch in reverse, manual select via touchscreen. |
| Amplifier | Dynamic Reality Amp 2 – 20W RMS x4, 55W Peak x4, 47% less internal resistance. |
| 5ch/5V Preouts + Subwoofer | Independent sub volume & phase, low/high-pass filters with selectable cutoffs. |
| 10-Band EQ | Presets: R&B, Rock, Pop, Dance, Hip-Hop, Electronica, Jazz, Soul, Country, Custom. |
| Dynamic Stage Organizer (DSO) | Improves stereo positioning for speakers in doors/dashboard. |
| ExtraBass | Boost low-end with minimal distortion. |
| Beep Tone | Optional audible feedback. |
| AM/FM w/ RDS | Digital Clarity Tuner, 5 memory bands, 6 presets per band, BTM (Best Tuning Memory). |
| SiriusXM-Ready | Compatible with SiriusXM Connect Tuner (220SXV300 sold separately). |

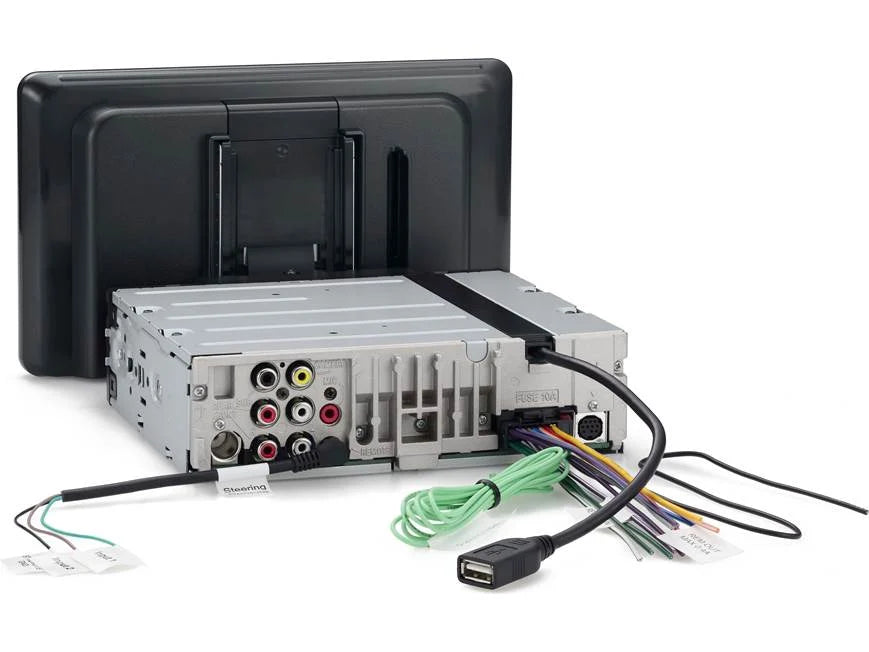

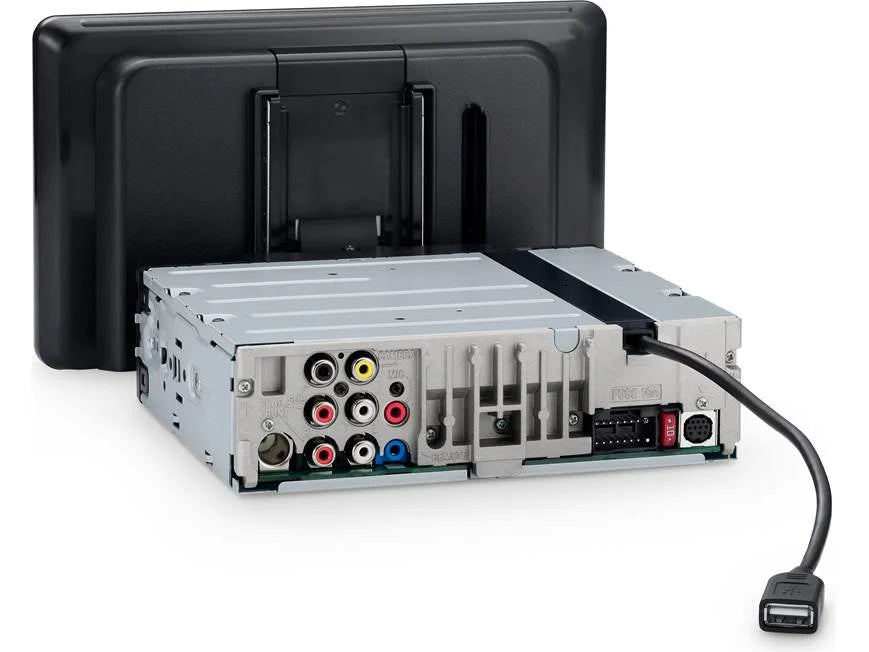

| Package Contents | Single-DIN source unit (10A fuse), 8.95" Touchscreen monitor, wiring harness w/ parking brake wire, SWC adapter, USB cables (52" & 23"), IR Remote (RM-X170), microphone w/ visor bracket, surface bracket, tape, screws, joint & rear-panel covers, Operating Instructions & Warranty. |
| General Specs | Receiver Type: Digital multimedia (no CD) Screen: 8.95" Resistive Anti-Glare Mounting: Single-DIN chassis with floating display RMS Power: 20W x 4 Peak Power: 55W x 4 EQ Bands: 10-band graphic EQ Bluetooth: Built-in 3.0 EXTRA BASS & DSO: Yes Smartphone Integration: Apple CarPlay Wired, Android Auto Wired, WebLink Cast Inputs: USB (rear), HDMI, Rear Camera Audio Formats: MP3, WMA, AAC, FLAC, WAV Radio: AM/FM w/ RDS, SiriusXM Ready Display Dimensions: 9.005" x 5.335" Warranty: 3 Years Parts & Labour, 60 Days Returns |
