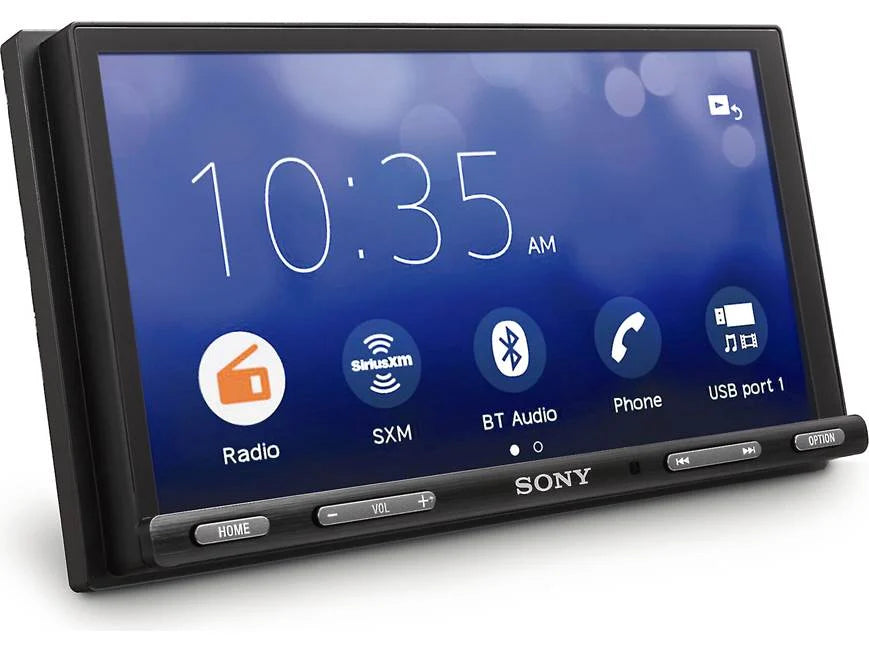

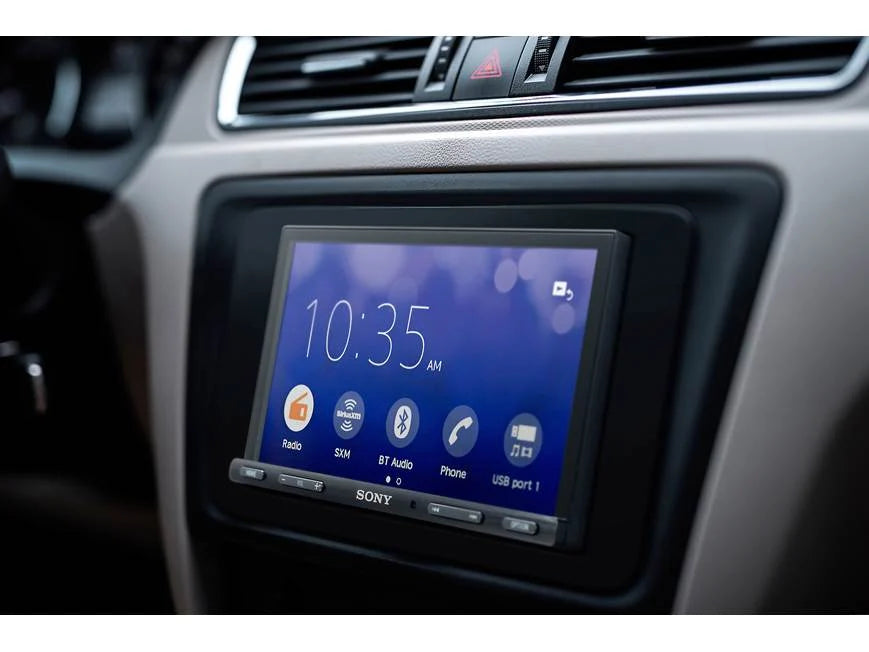

SONY 7" (17.6Cm) Digital Media Receiver With Weblink™ Cast-XAVAX5500
The Sony XAV-AX5500 is a premium 6.95″ double-DIN multimedia receiver featuring a capacitive touchscreen, Apple CarPlay, Android Auto, Bluetooth streaming, and powerful 5-volt preouts for enhanced system performance.
| Specification / Feature | |
|---|---|
| General | Receiver Type: Digital multimedia (no CD) |
| Screen Size: 6.95" | |

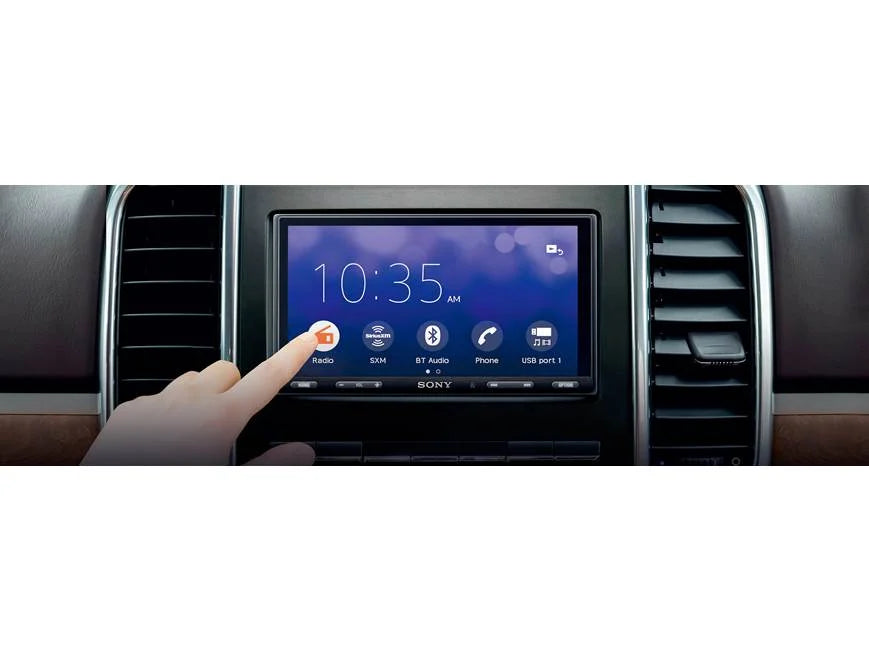

| Screen Type: Swipeable Capacitive Touchscreen w/ Gesture Control | |
| Resolution: 800 RGB x 480 (1,152,000 pixels) | |
| Mounting Size: Double-DIN chassis | |
| RMS Power (CTA-2006): 20W x 4 @ 4Ω, 20Hz–20kHz, 1% THD-N | |
| Peak Power: 55W x 4 (220W total) | |
| Preamp Voltage: 5V | |
| EQ Bands: 10-band graphic EQ (R&B, Rock, Pop, Dance, Hip-Hop, Electronica, Jazz, Soul, Country, Custom) | |

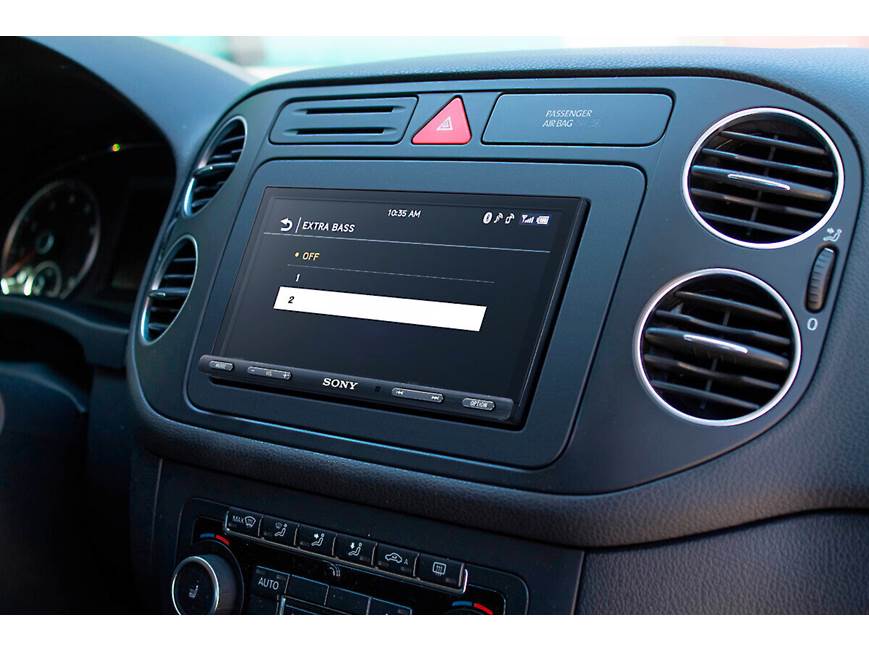

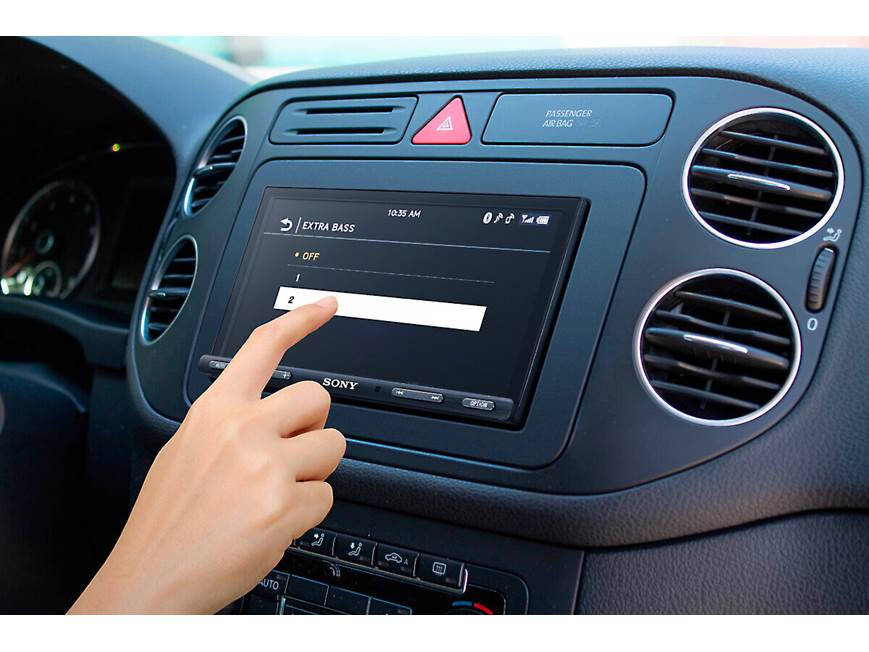

| ExtraBass: Yes | |
| Dynamic Stage Organizer (DSO): Yes | |
| Key Button Color: White | |
| CTA-2006 Compliant: Yes | |

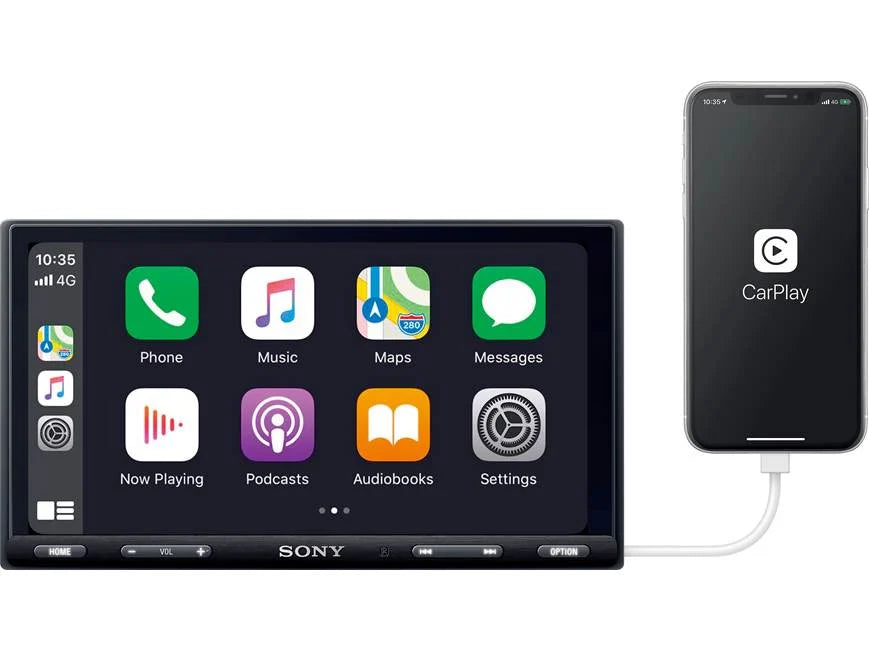

| Smartphone Integration | Apple CarPlay (Wired): iPhone 5+ (iOS 7.1+), rear USB1 port, Siri voice control, Maps, Music, Messages, Third-party apps (Spotify, Pandora, Tidal, Audible, etc.), Apple HomeKit support |

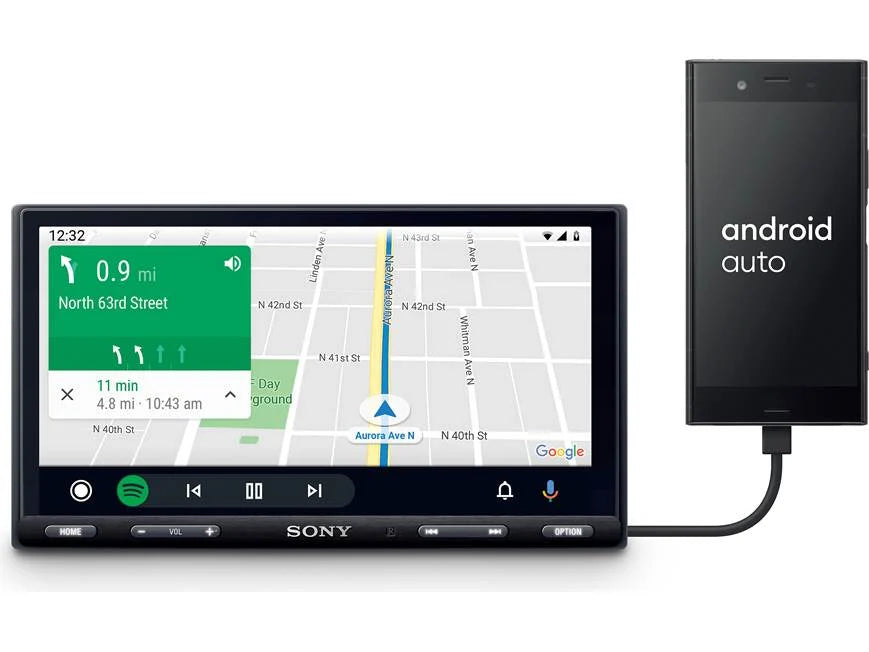

| Android Auto (Wired): Android 5.0+ (USB1 rear port), Bluetooth pairing required, Google Maps & Waze, Google Assistant, SMS & Calls, Music streaming via YouTube Music and other apps | |
| Google Assistant: Voice commands via external mic; call, message, directions, music control | |

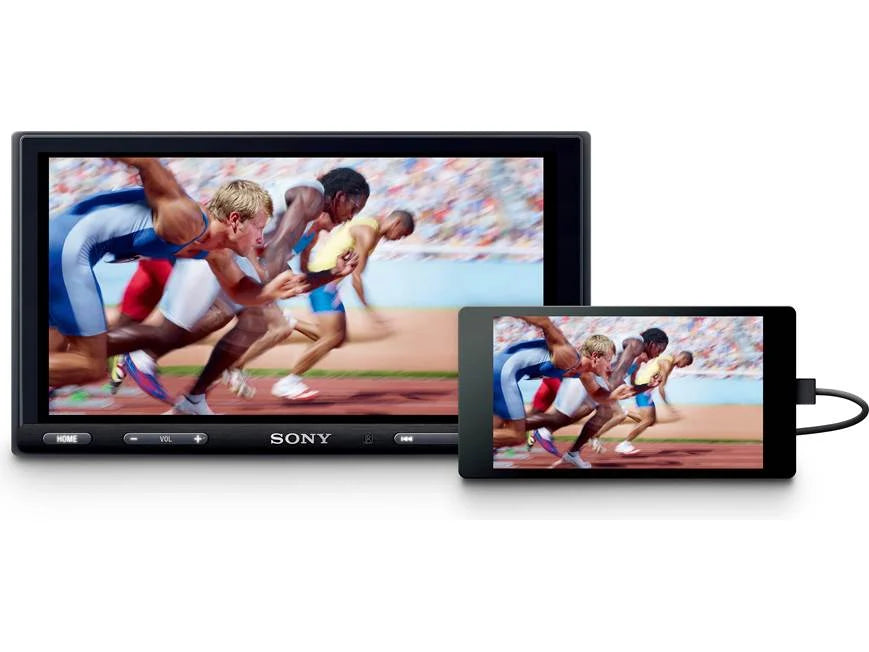

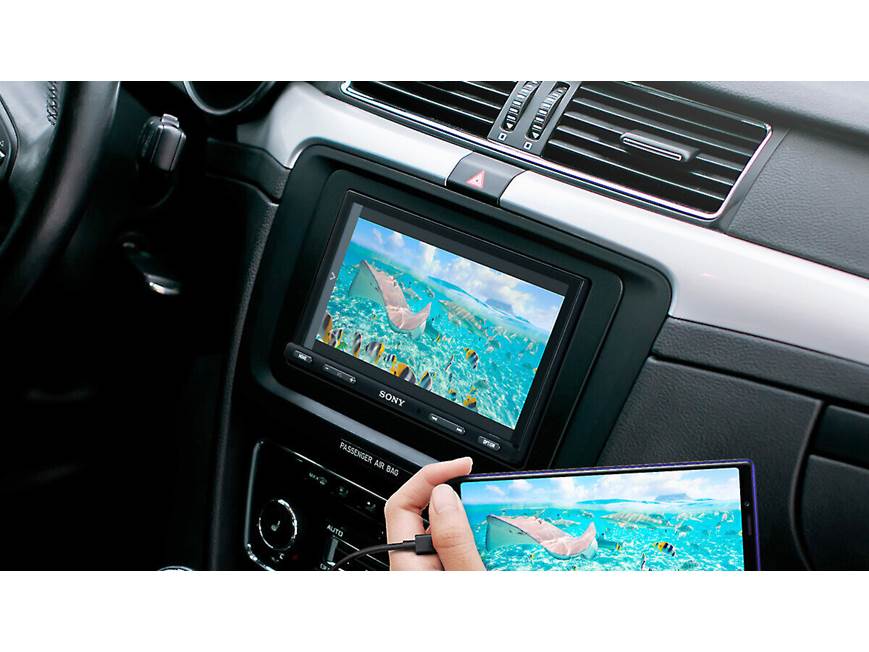

| WebLink: iOS 12+/Android 6.0+, access YouTube, Yelp, Zomato, device media libraries; parking brake required for video playback | |
| Siri Control: Yes | |
| iPhone Compatibility: iPhone 5+ | |
| Android Control: Yes | |
| Audio & DSP | Preamp Outputs: 5-channel (Front/Rear/Mono Sub) |
| Subwoofer Output: Yes, independent volume and phase control | |
| Low/High-Pass Filters: Front & rear speakers (50–120Hz selectable), subwoofer (50–120Hz) | |
| Dynamic Reality Amp 2: 47% less internal resistance for clean power output | |
| Beep Tone: Optional audible feedback | |
| Bluetooth | Version: 3.0 |
| Profiles: HFP 1.6, PBAP 1.1, A2DP 1.3, AVRCP 1.3, SSP | |
| Hands-Free Calls: External mic with adjustable gain, store up to 1,000 contacts, call history, redial | |
| Wireless Audio Streaming: SBC & AAC, song/artist info display (AVRCP 1.4 compatible) | |

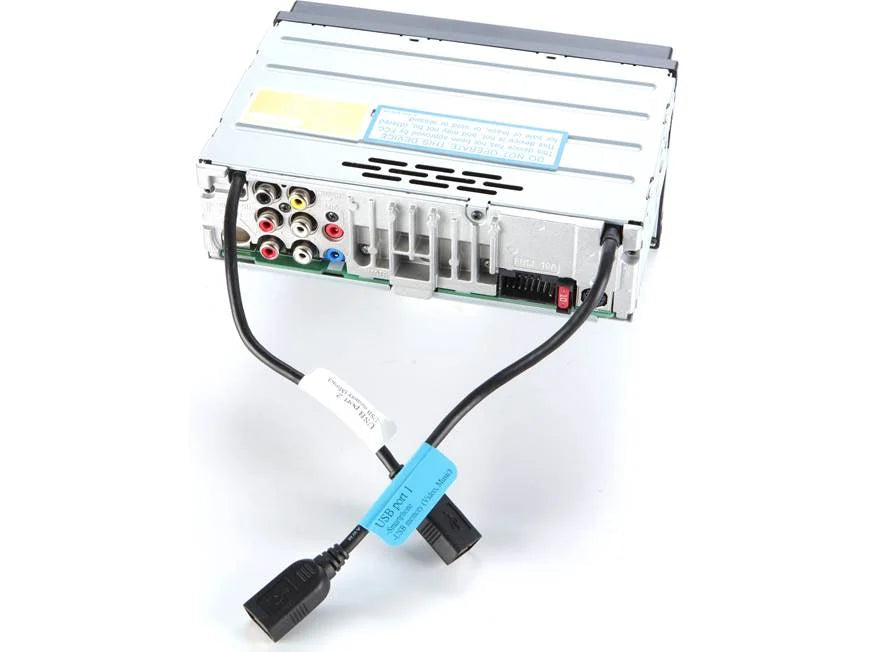

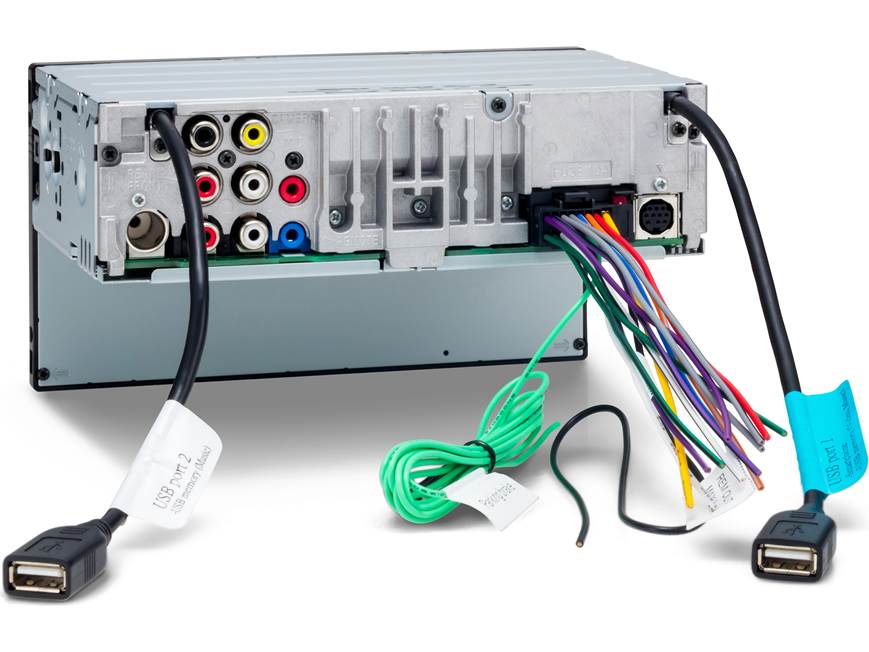

| USB & Media Playback | USB Ports: 2 rear (USB1-Smartphone: 1.5A, USB2-USB Memory: 0.5A) |
| File Support: MP3, WMA, AAC, FLAC, WAV | |
| Video Playback: USB1 only (MPEG-4, WMV, MKV, Xvid), requires parking brake | |
| MTP/MSC: Supports USB MSC & MTP devices (audio & video playback) | |
| Max Folders/Files: USB1: unlimited folders / 20,000 files; USB2: 255 folders / 65,280 files | |
| USB Extension: 52" cable included; follow USB length & compatibility guidelines | |
| Radio | AM/FM w/ RDS: Digital Clarity Tuner, 5 memory bands, 6 presets per band |
| BTM (Best Tuning Memory): Selects stations with strongest signal | |
| SiriusXM Ready: Compatible with 220SXV300 tuner (sold separately) | |
| Touchscreen & Remote | Wallpaper Options: 5 colours + USB JPEG |
| Picture EQ: Dynamic, Standard, Theater, Custom (parking brake required) | |
| Aspect Ratio: Normal, Zoom, Full, Captions | |
| Dimmer: Auto / On, adjustable -5 to +5 | |
| Front-Panel Buttons: Volume, Source, Sound settings, Voice control | |
| Remote Control: IR wireless (RM-X170) + steering wheel control adapter compatibility | |

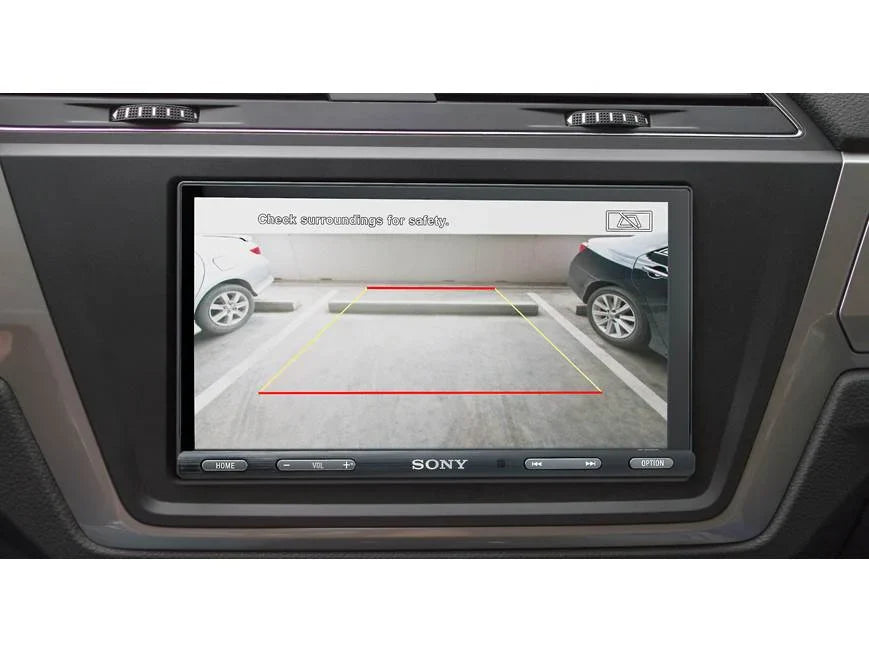

| Camera Integration | Rearview Camera Input: Composite video input, parking guide lines, auto/manual selection |
| Auto-Switching: Shifts to reverse automatically; approx. 1.1 sec | |
| Installation & Info | Parking Brake Connection: Required for video/settings access |
| Wireless Remote: Included | |
| Dimensions (Chassis) | Depth: 5.065" |
| Width: 7.015" | |
| Height: 3.945" | |
| Warranty & Returns | Parts & Labour: 3 Years |
| Returns: 60 Days | |

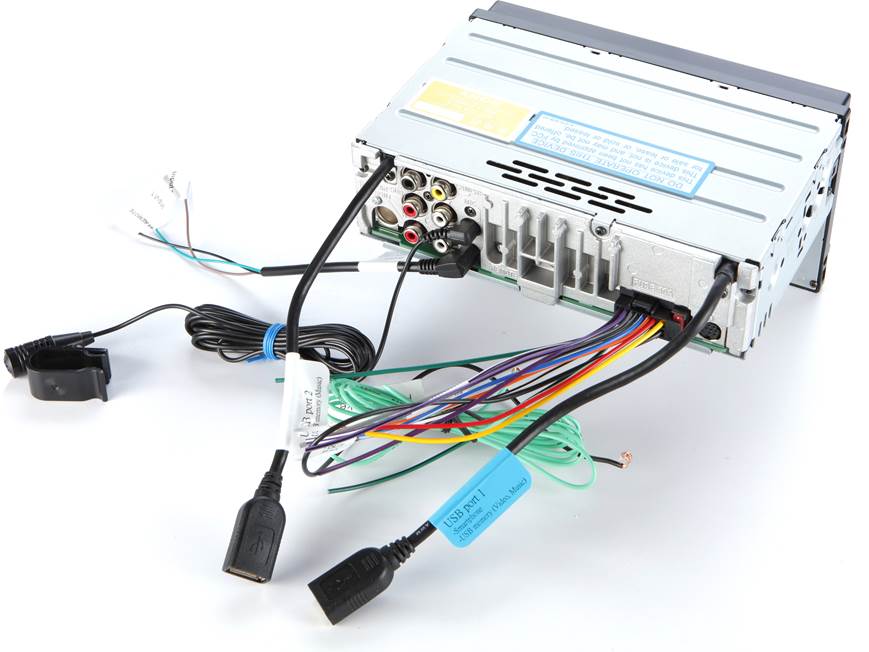

| Package Contents | Digital media receiver w/ 6.95" touchscreen, wiring harness, remote control (RM-X170) with CR2025 battery, microphone w/ bracket, 52" USB extension, 2-sided tape, M5x9mm screws, operating instructions, warranty sheet |
