SONY 10.1'' (25.7Cm) Digital Media Receiver With Hdmi-XAVAX8500

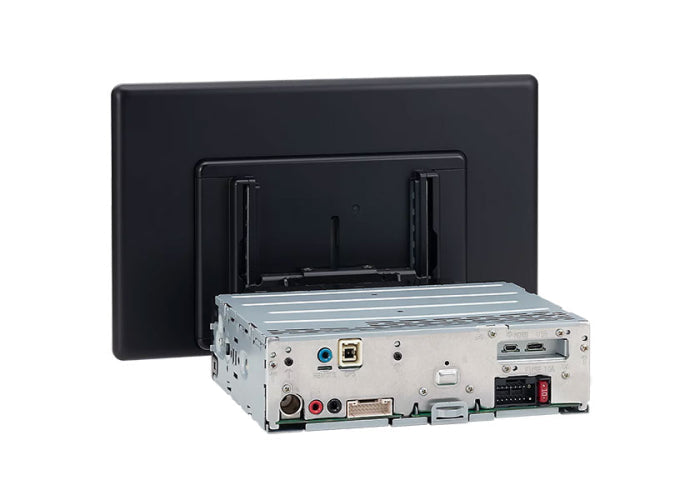

Sony XAV-AX8500

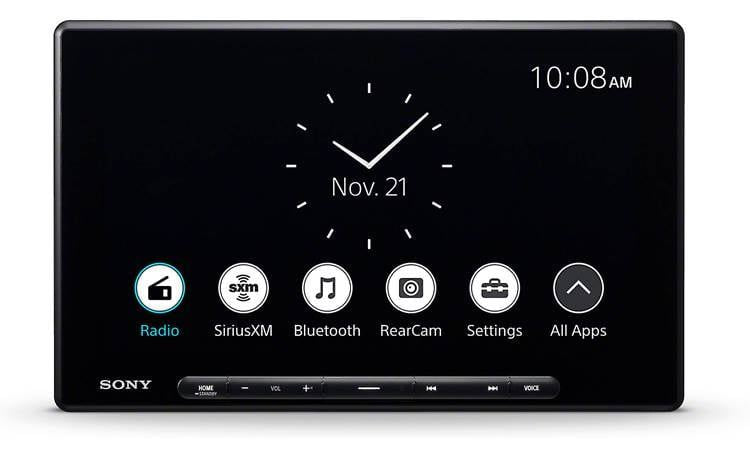

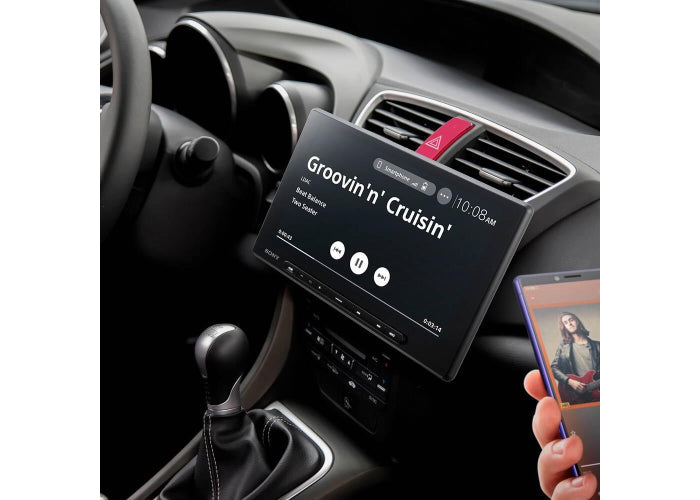

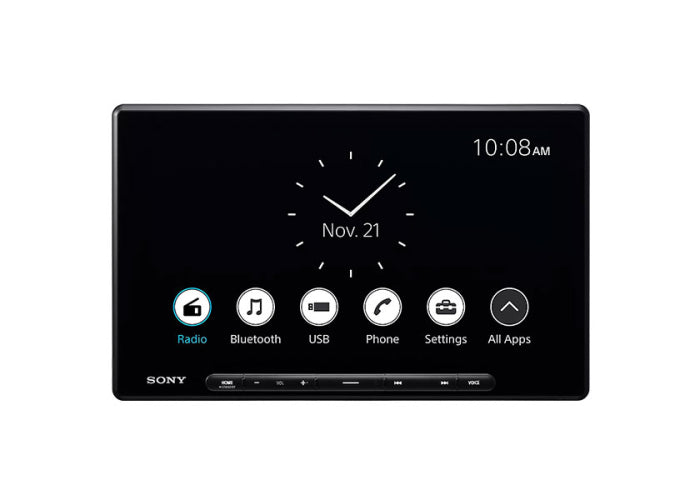

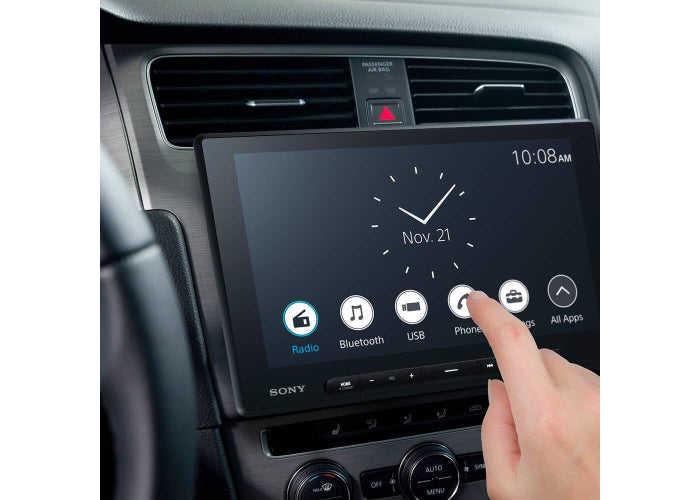

Premium 10.1″ floating capacitive touchscreen multimedia receiver with Apple CarPlay, Android Auto, HDMI input, advanced vehicle integration, and a flexible single-DIN source unit.
| Sony XAV-AX8500 – Key Specifications | |
|---|---|
| Color | Black |
| Screen Size | 10.1″ |
| Touchscreen | Capacitive LCD, 1280×720 HD, anti-glare, optically bonded |

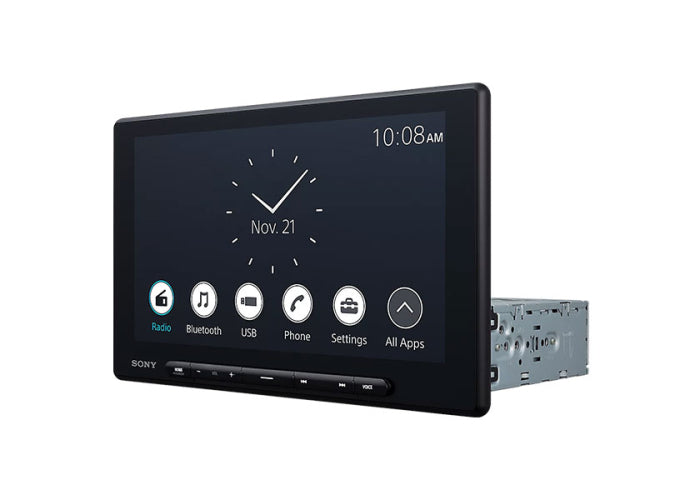

| Chassis Size | Single DIN |
| Channels | 5 |
| Max Power Output | 55W x 4 (220W total) |
| Backlight | LCD |
| CD/DVD Player | No |
| Built-in GPS | No |
| Memory Card Slot | No |
| HD Radio | No |
| EQ Presets | 18 FM / 12 AM |

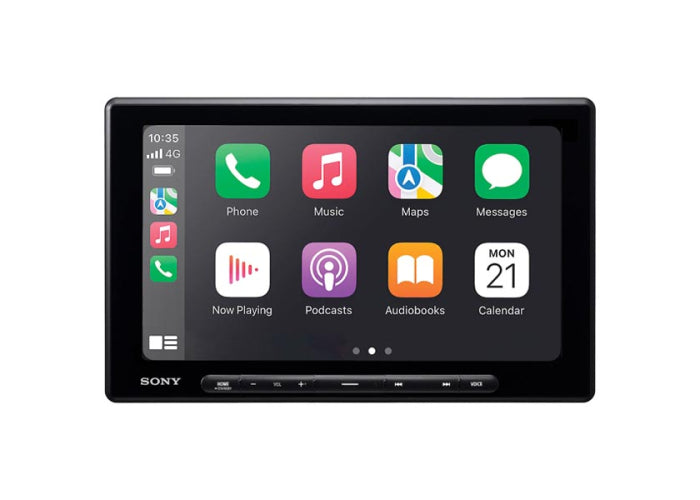

| Apple CarPlay | Yes (wired/wireless via 5GHz WiFi) |
| Android Auto | Yes (wired/wireless, Android 10+ with WiFi for wireless) |
| Bluetooth 5.0 | Yes – hands-free calling & music streaming |
| Profiles | HFP 1.7.1, PBAP 1.1, A2DP 1.3.1, AVRCP 1.6.1 |
| USB Input | USB-C (rear, 3A charging, supports MSC playback) |
| AUX Input | Yes |
| A/V Input | Yes |

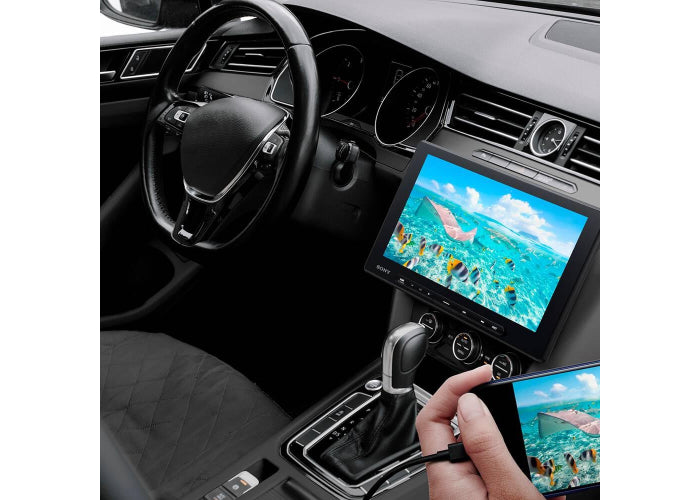

| HDMI Input | Micro-HDMI rear input (video/audio playback, no control) |
| Steering Wheel Control Compatible | Yes (adapter sold separately) |
| Wireless Audio Apps | Spotify, Apple Music, Pandora, Tidal, YouTube Music, etc. |

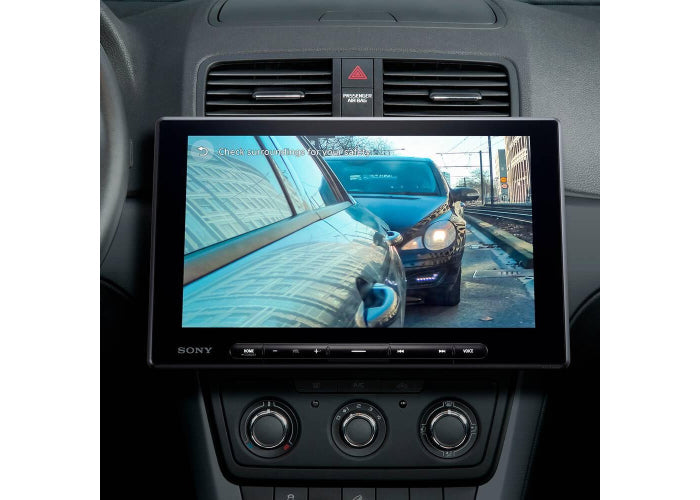

| Back-Up Camera Input | Yes |
| Second Camera Input | Yes |
| Auto-Switching | Yes (reverse gear triggers rear camera) |
| Parking Guidelines | Customizable color-coded lines |
| iDatalink Maestro Compatible | Yes (for OEM integration & vehicle data display) |
| Monitor Size | 10.565″ W x 6.575″ H x 1.4375″ D |
| Installation Adjustments | Tilt (5–35°), Depth ±0.375″, Height ±1.1875″, Lateral ±1″ |
| Post-install Tilt/Swivel | ±15° |
| Display Settings | Apps area: 5 icons | Wallpapers: 4 presets + 2 custom JPEGs | Brightness: Dimmer Auto/On, levels 1–4, can turn backlight off |
| Control Buttons | Power, Home, Volume, Previous/Next, Voice Recognition | Optional RM-X400 IR remote |
| Amplifier | Dynamic Reality Amp 2 – 20W RMS x4, 55W peak x4 |
| Preouts | 5V / 6-ch (front, rear, subwoofer) |
| Subwoofer Control | Mono/stereo, volume -10 to +10, phase normal/reverse |
| Crossovers | Low-pass & high-pass filters, slopes -12/-24/-36/-48 dB |
| EQ | 14-band graphic EQ + presets (R&B, Rock, Pop, Dance, Hip-Hop, EDM, Jazz, Soul, Country, Custom 1/2) |
| Time Alignment | 4 presets + manual custom adjustment (0.1 in / 1 cm increments) |
| AM/FM | Digital clarity tuner, RDS, 5 memory bands, BTM |
| SiriusXM Ready | Compatible with 220SXV300 tuner (sold separately) |
| Package Contents | Single-DIN source unit (10A fuse) 10.1″ touchscreen monitor Wiring harness w/ parking brake wire Camera/preout harness SWC adapter (3-wire to 3.5mm) USB-C extension cable (59″) GPS antenna + mounting plate Microphone w/ visor bracket (12′ cable) Surface bracket, screws (various sizes), 2 plastic covers, 2 wire-ties Operating instructions & warranty |
| Key Notes | Quick Start-Up: <8 sec to safety caution display Video Lockout: Parking brake connection required for video USB-C Port: No MTP/AOA 2.0; supports MSC playback only Optional Integration: iDatalink Maestro RR/RR2 for OEM display & functions |
