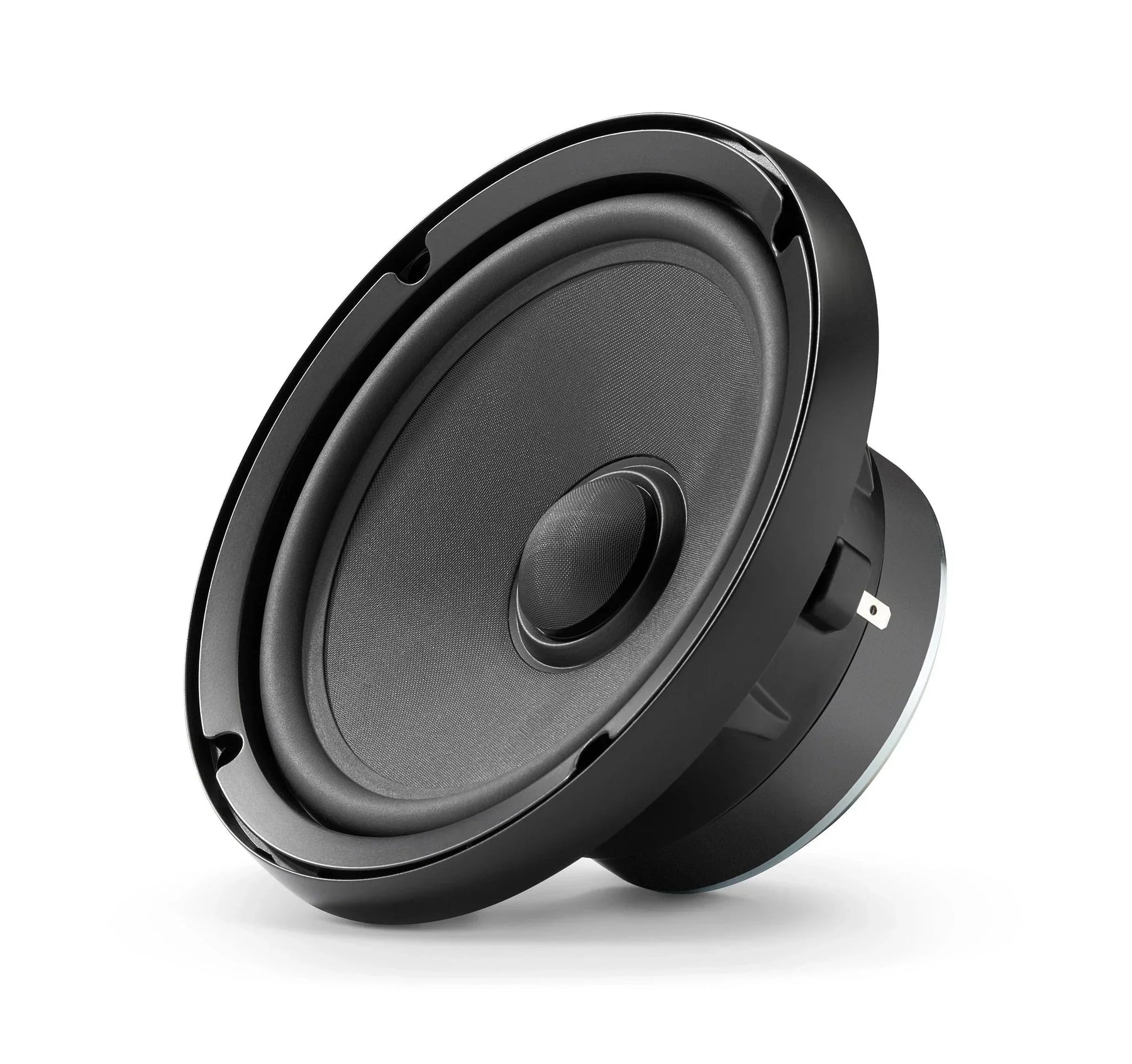

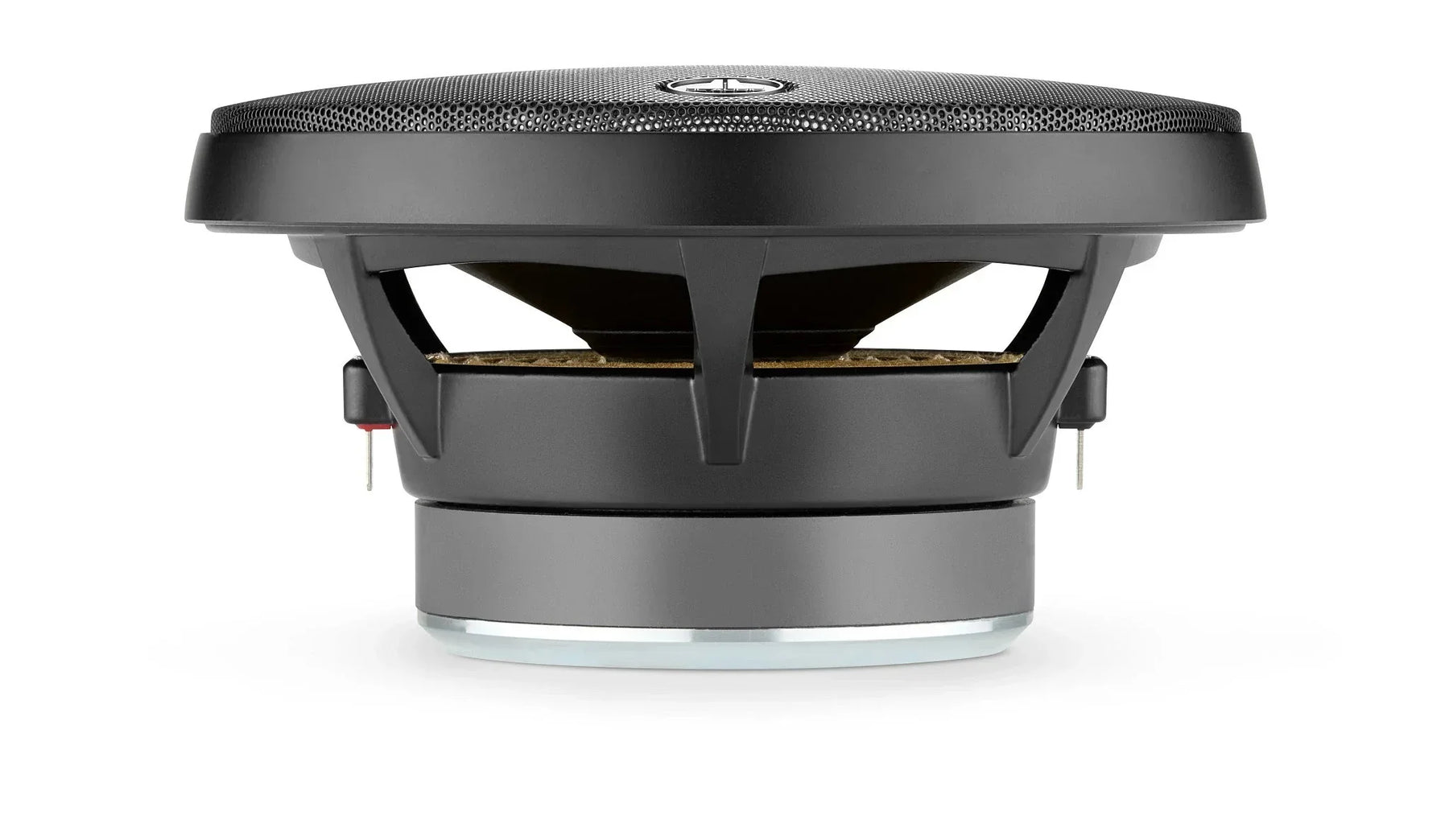

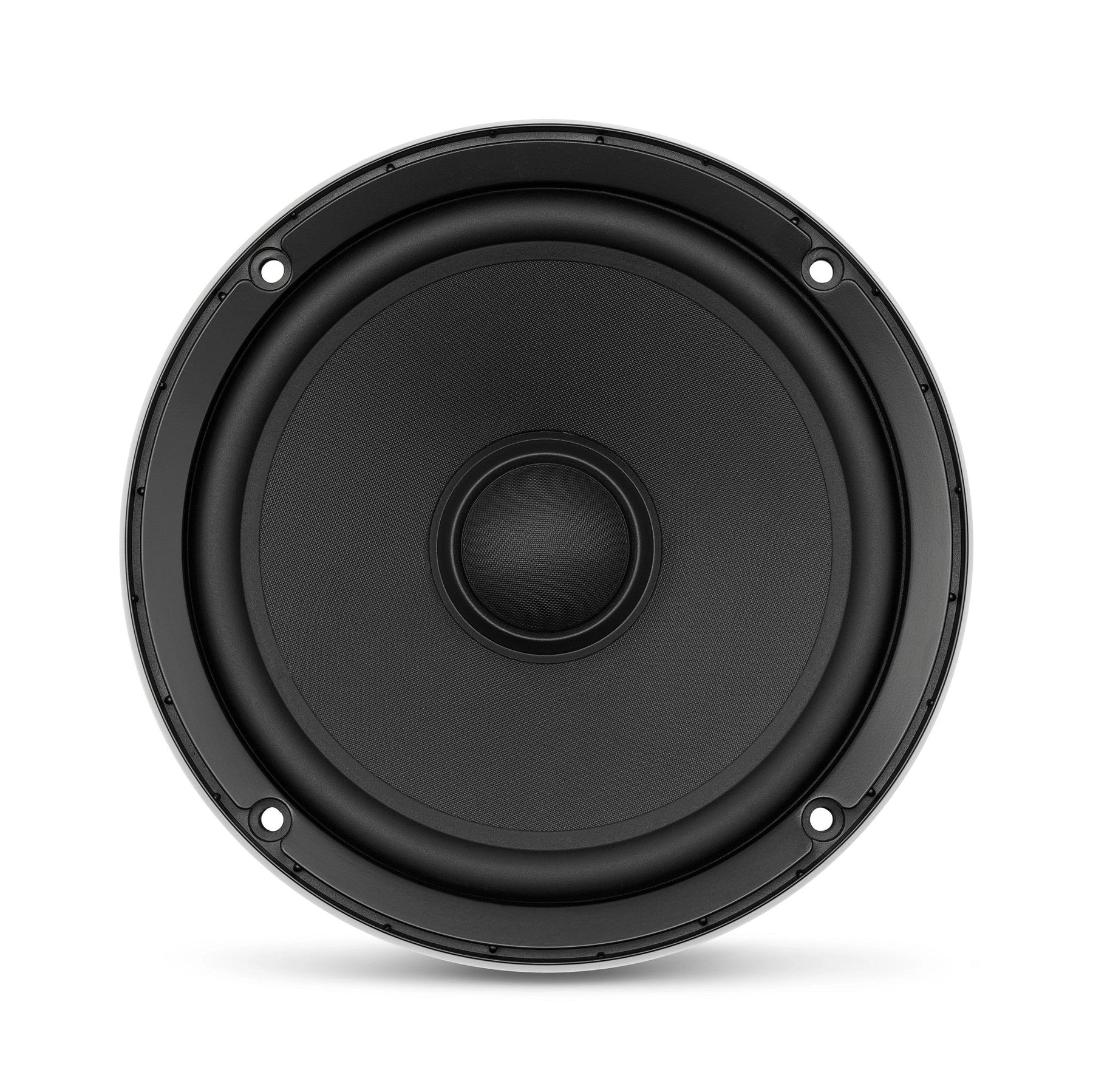

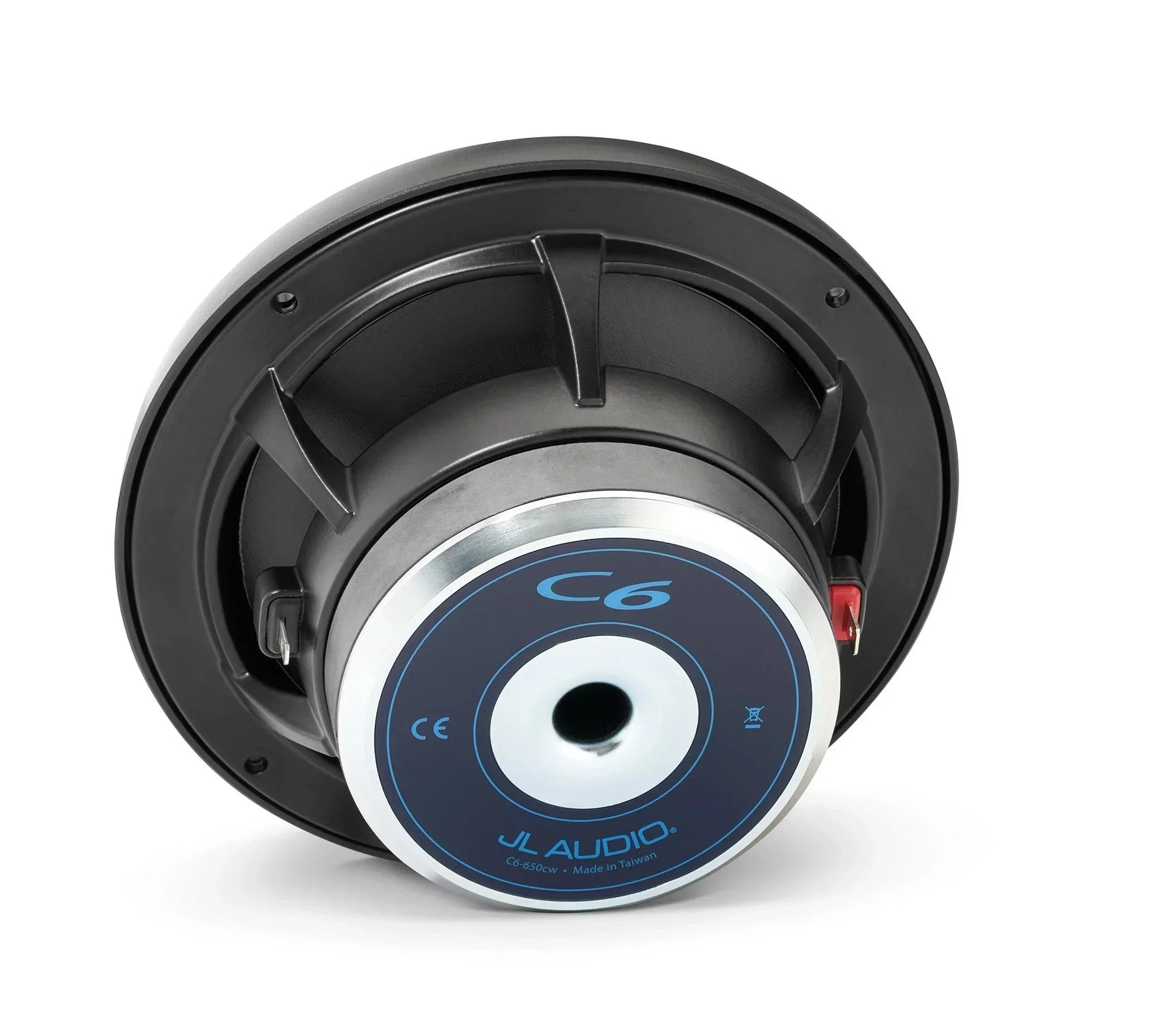

JL AUDIO 6.5" (165 Mm) Component Woofer, Single -C6-650cw
6.5" (165 mm) Component Woofer (with Grille)
Born from shared technologies used in our flagship C7 speakers, the C6-650cw component woofer benefits from vast woofer design experience and advanced modeling systems of JL Audio.
Ideal for active systems, the C6-650cw component woofer features a proprietary cast alloy frame outfitted with our Elevated Frame Cooling™ technology and a DMA-optimized motor system to generate outstanding midbass impact with ultralow distortion.
Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning digital signal processor, such as the JL Audio TwK® DSP, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C6 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
C6-650cw Component Woofer Features:
• Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
• Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
• Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter’s response
• Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels
• Cast alloy frame with our Elevated Frame Cooling feature

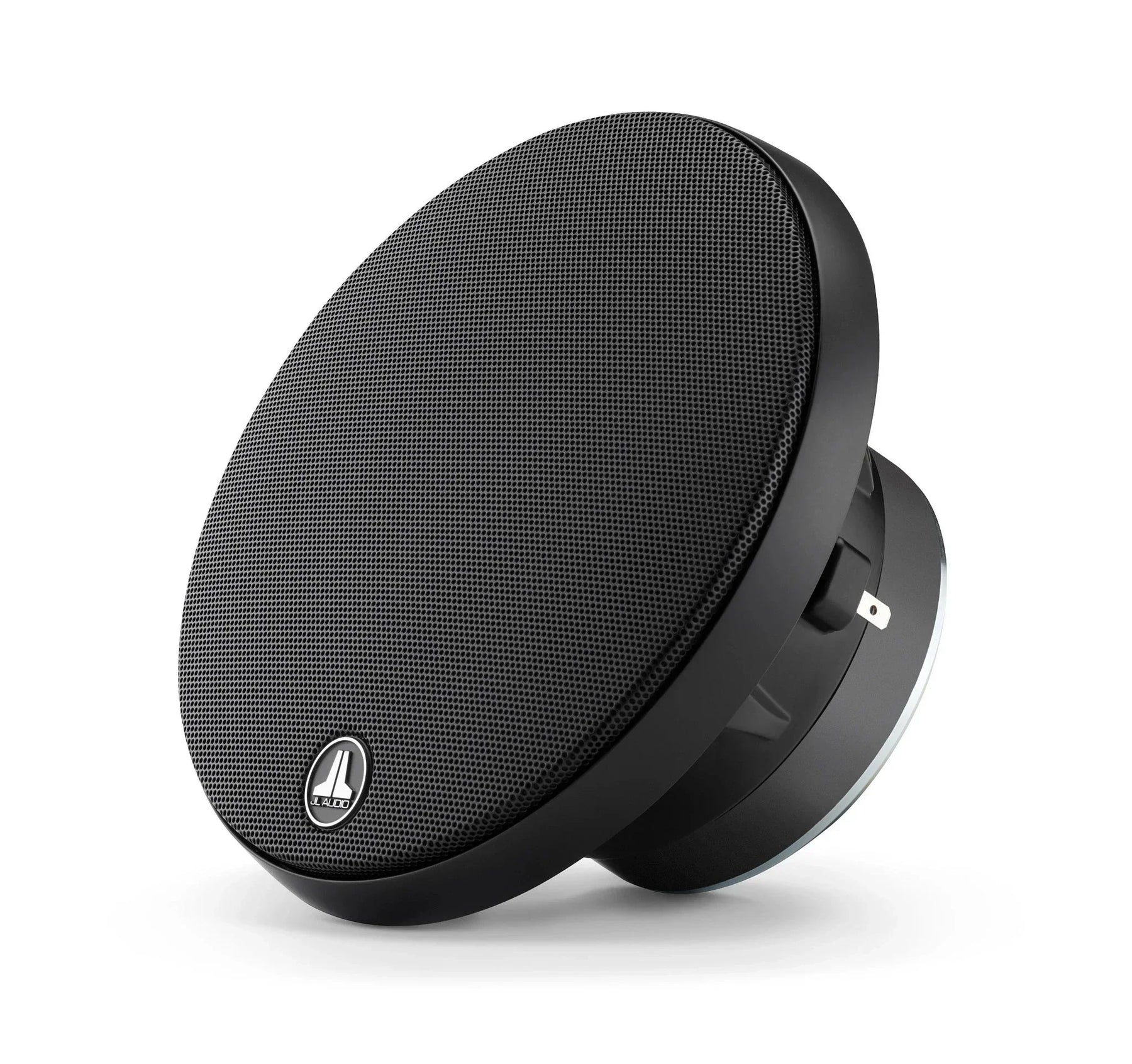

• Includes fine mesh grille
Design Bandwidth:
With 48 dB/octave filters: 55 Hz-6 kHz
With 24 dB/octave filters: 65 Hz-6 kHz
With 12 dB/octave filters: 80 Hz-6 kHz
Component woofers are sold individually and include a plastic grille tray, one fine steel mesh grille and one electroformed JL Audio badge logo.
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 87.37 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 55 Hz - 6 KHz ± 3 dB |
| Frame Outer Diameter* (A) | 6.50 in / 165 mm |
| Grille Tray Outer Diameter** (B) | 6.76 in / 172 mm |
| Motor Outer Diameter (C) | 3.54 in / 90 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion*** (E) | 1 in / 25 mm |
| Mounting Hole Diameter (F) | 5.46 in / 139 mm |
| Mounting Depth (G) | 2.60 in / 66 mm |
|
*Does not take into account mounting tabs |
|
