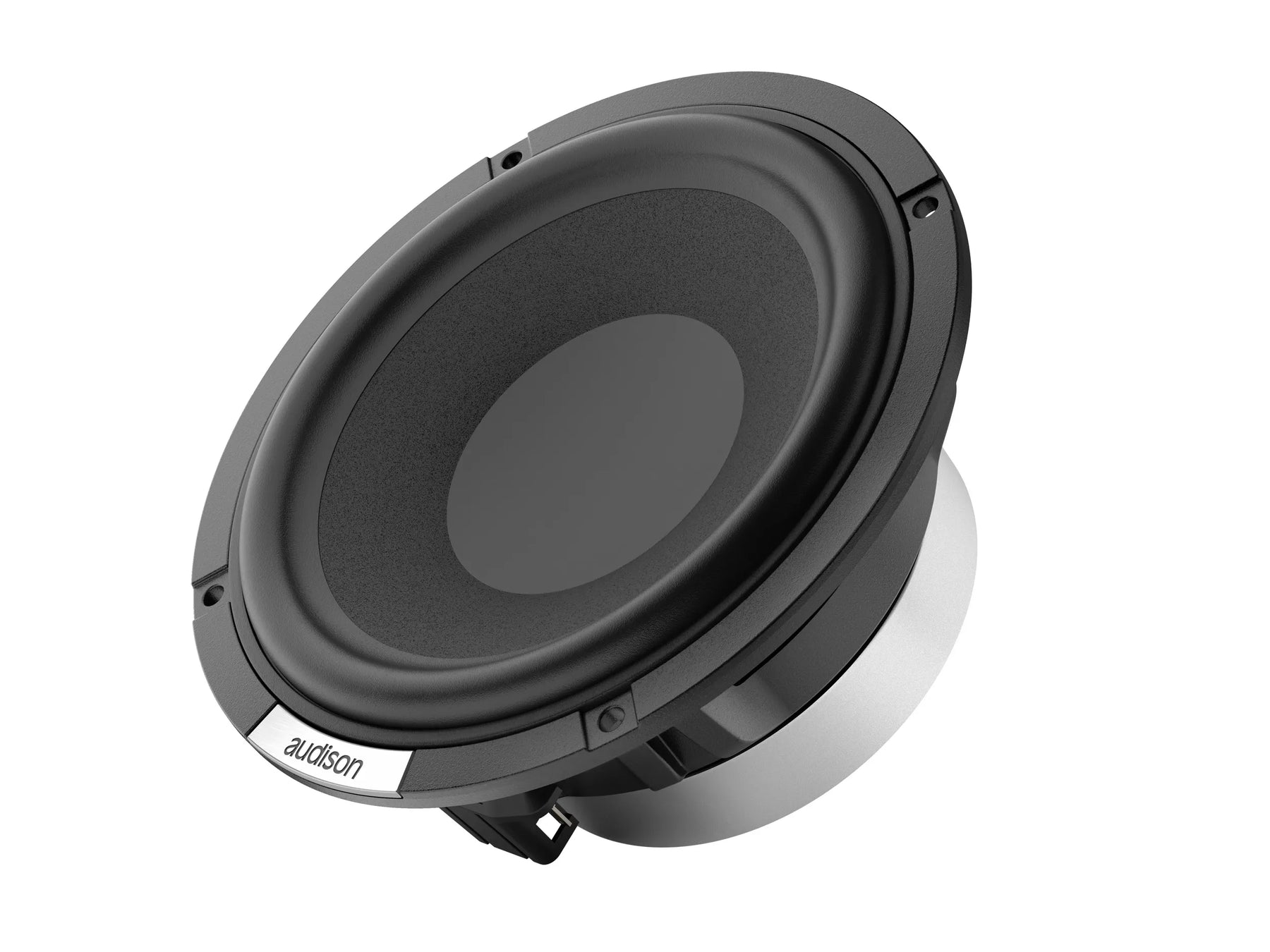

AUDISON Voce Ii - 6.5" Woofer Component Pair (Av 6.5 P Ii)

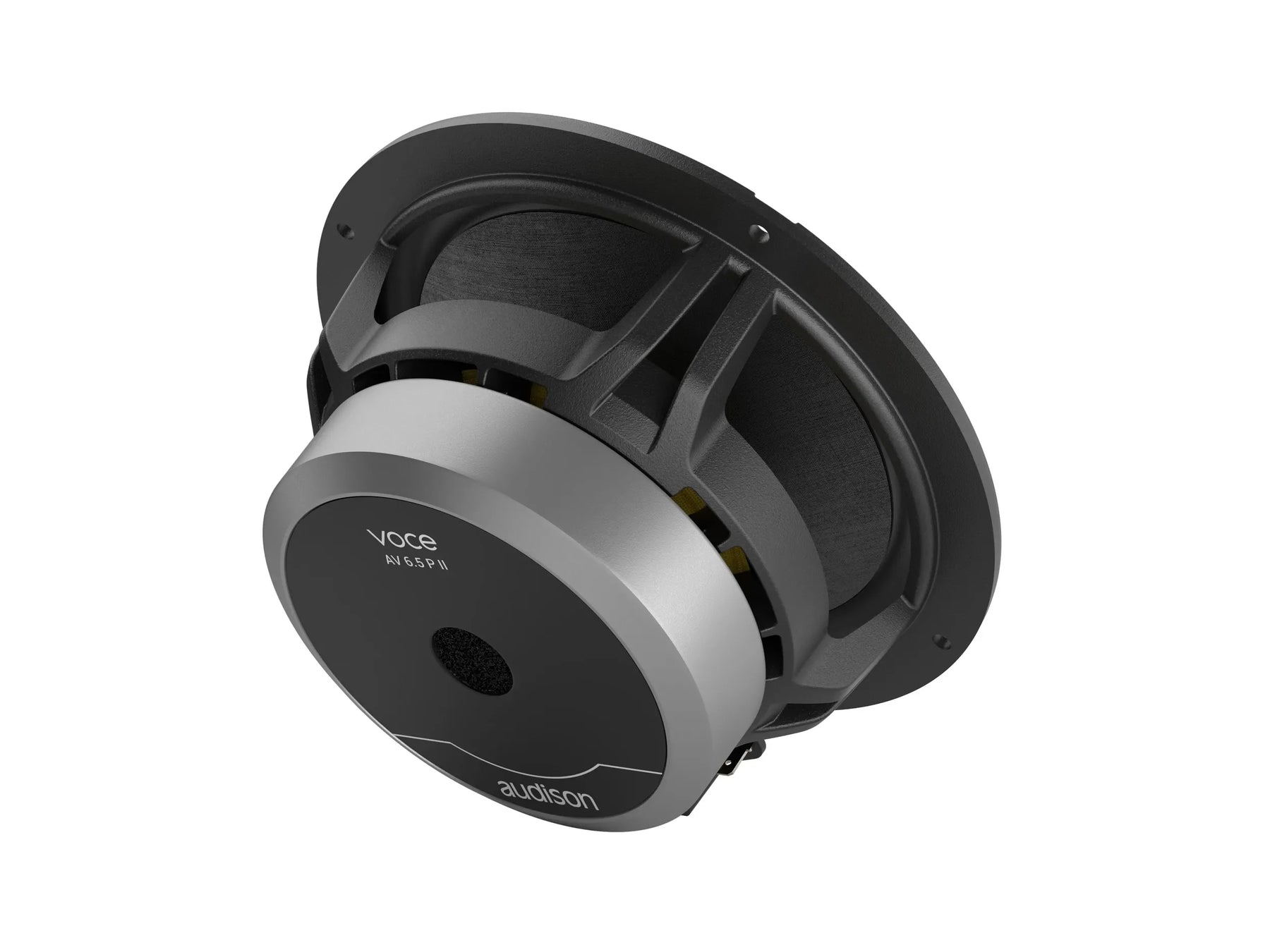

The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality. The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminum ring to minimize distortion and enhance frequency response.
Technical Specs
| Nominal diameter | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Minimum Impedance | 3.1 Ohm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 150 W |
| Sensitivity | 91 dB |
| Frequency Response | 45 - 7500 Hz |
| Voice Coil Ø | 40 mm (1.6 in) |
| Chassis Material | ALUMINIUM |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 100 x 45 x 18 (3.9 x 1.8 x 0.7) mm |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | SEMI-PRESSED PAPER |
| Surround Material | RUBBER |
| Xmax | 4.95 mm (0.19 in) |
| Xmech | 7.5 mm (0.3 in) |
| Voice Coil Winding Height | 13 mm (0.51 in) |
| Gap Height | 6 mm (0.24 in) |
Electric-acoustic Specs
| D | 128.3 cm² (19.887 in²) |
| Re | 2.9 Ohm |
| Fs | 66 Hz |
| Le | 0.3 mH |
| Vas | 9.09 l (0.321 ft) |
| Mms | 15.3 g (0.54 oz) |
| Cms | 0.38 mm/N |
| BL | 5.5 T•m |
| Qts | 0.57 |
| Qes | 0.61 |
| Qms | 9.06 |
General
| Weight | 1.6 kg |
Dimensions
 |
|
| Dimension A | 165 mm (6.5 in) |
| Dimension B | 140.8 mm (5.54 in) |
| Dimension C | 74.2 mm (2.92 in) |
| Dimension D | 69.8 mm (2.75 in) |
| Centre to centre distance | 155 mm |
| Hole diameter | 4.5 mm |
