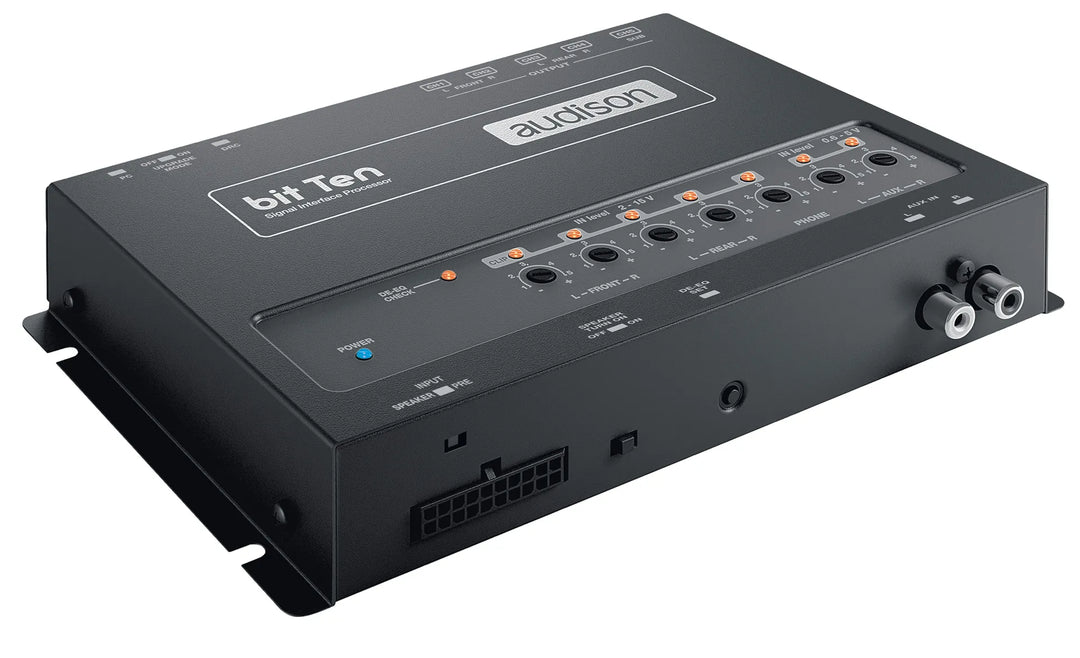

AUDISON Bit Line - 5 Channel Stand Alone Digital Signal Processor (Bit Ten)

AUDISON Bit Line - 5 Channel Stand Alone Digital Signal Processor (Bit Ten)

Regular price$629.99
/
Tax included. Shipping calculated at checkout.

The Audison Bit Ten is a versatile and high-performance digital signal processor designed to enhance and optimize your vehicle's audio system, transforming any setup into a high-quality sound system. Thanks to its ability to manage and process audio signals with precision and detail, the Bit Ten allows you to achieve a balanced and faithful sound, perfectly adapted to the acoustic characteristics of the cabin.

This device allows you to connect original or aftermarket audio sources, providing complete control over every aspect of the sound through an intuitive and advanced user interface. The Bit Ten offers the ability to adjust equalization parameters, crossover filters, and time delay management, allowing for sound optimization according to the specific needs of the user and the vehicle.

Installing the Bit Ten is simple and flexible, designed to easily integrate with a wide range of car audio systems, whether existing or new. Thanks to its compact size and versatility, the Bit Ten can be installed in various locations within the cabin without taking up excessive space.

The Bit Ten stands out for its ability to significantly improve the audio quality of the vehicle's system, turning every trip into a superior listening experience. This digital processor is the ideal choice for those who want to customize and perfect their audio system, ensuring clear, powerful, and high-fidelity sound in any situation.



DSP Tech Data

Nominal power supply voltage / Fuse 11 ÷ 15 VDC
Channels 5
Sample Rate 24 bit / 48 kHz
Hi Level Inputs 4
Low Level Inputs 4
Digital Inputs 0
Processing Method Fixed point
Idling current 0.4 A
Switched off without DRC MP 2.5 mA
Switched off with DRC MP 4 mA
Remote IN 7 ÷ 15 VDC (1.3 mA)
Remote OUT 12 VDC (130 mA)

Signal Stage

Distortion - THD @ 1 kHz, 1 VRMS Output 0.005 %
Bandwidth @ -3 dB 10 ÷ 22k Hz
S/N ratio @ A weighted, 4 V Output, 2 V MASTER input 96 dBA
S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input 95 dBA
Channel Separation @ 1 kHz 85 dB
Input sensitivity AUX 0.6 ÷ 5 V RMS
Input impedance Pre In 15 kΩ
Input impedance Speaker In / AUX 2,2 kΩ
Max Output Level 0.1% THD 4 V RMS

Input Stage

Low level (Pre) AUX IN
High Level (Speaker In) FL - FR - RL - RR - PHONE IN

Output Stage

Low level (Pre) FRONT L/R, REAR L/R, SUB

Connection

From / To Personal Computer 1 x USB / B (1.1/2.0)

Crossover

Filter type Full / High Pass/ Low Pass/ Band Pass
Filter mode and slope Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dB
Crossover Frequency 68 steps @ 20 ÷20k Hz
Phase control 0° ÷ 180°

Time Alignment

Distance 0 ÷ 510 cm / 0 ÷ 200.8 in.
Delay 0 ÷ 15 ms
Step 0,08 ms; 2,8 cm / 1.1 in.
